Energy Supply Systems- Complete Solutions

Energy Supply Systems

Complete Solutions for every application

We provide you with the individual energy supply packages for each application, e.g. for:

  • Stud welding
  • Clinch applications
  • Handling
  • Adhesive Applications
  • Painting systems

  • Laser welding
  • Spot welding
  • Driver Applications
  • Arc welding
  • Piercing rivets



Longevity, durability, and quality are the characteristics of our energy supply systems, which we can supply for a wide variety of applications.

Various nominal diameters and routings available for your robot.

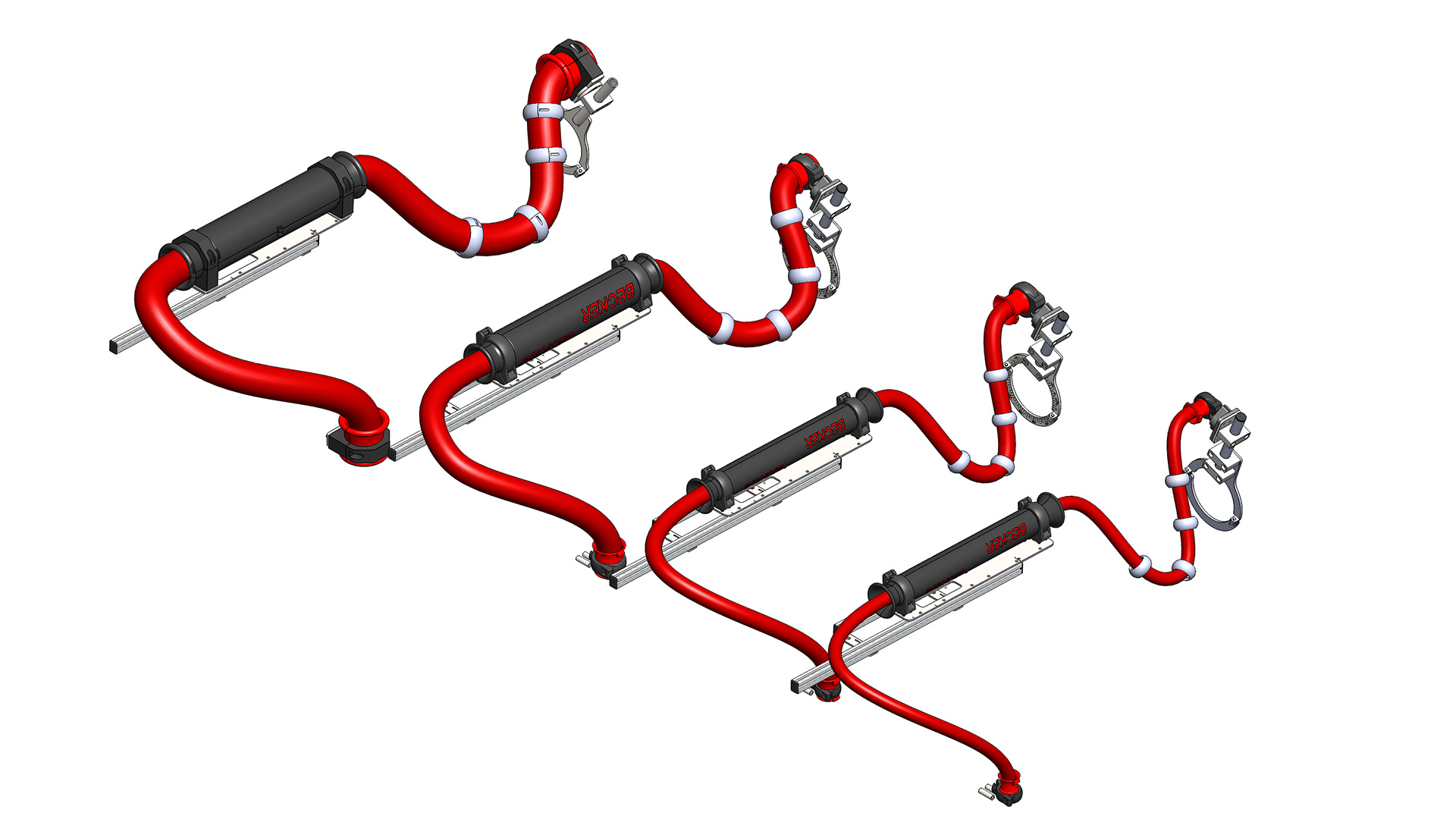

Depending on the application, our systems are designed in different nominal diameters. Mounting systems are available in various nominal widths of 36 to 90.

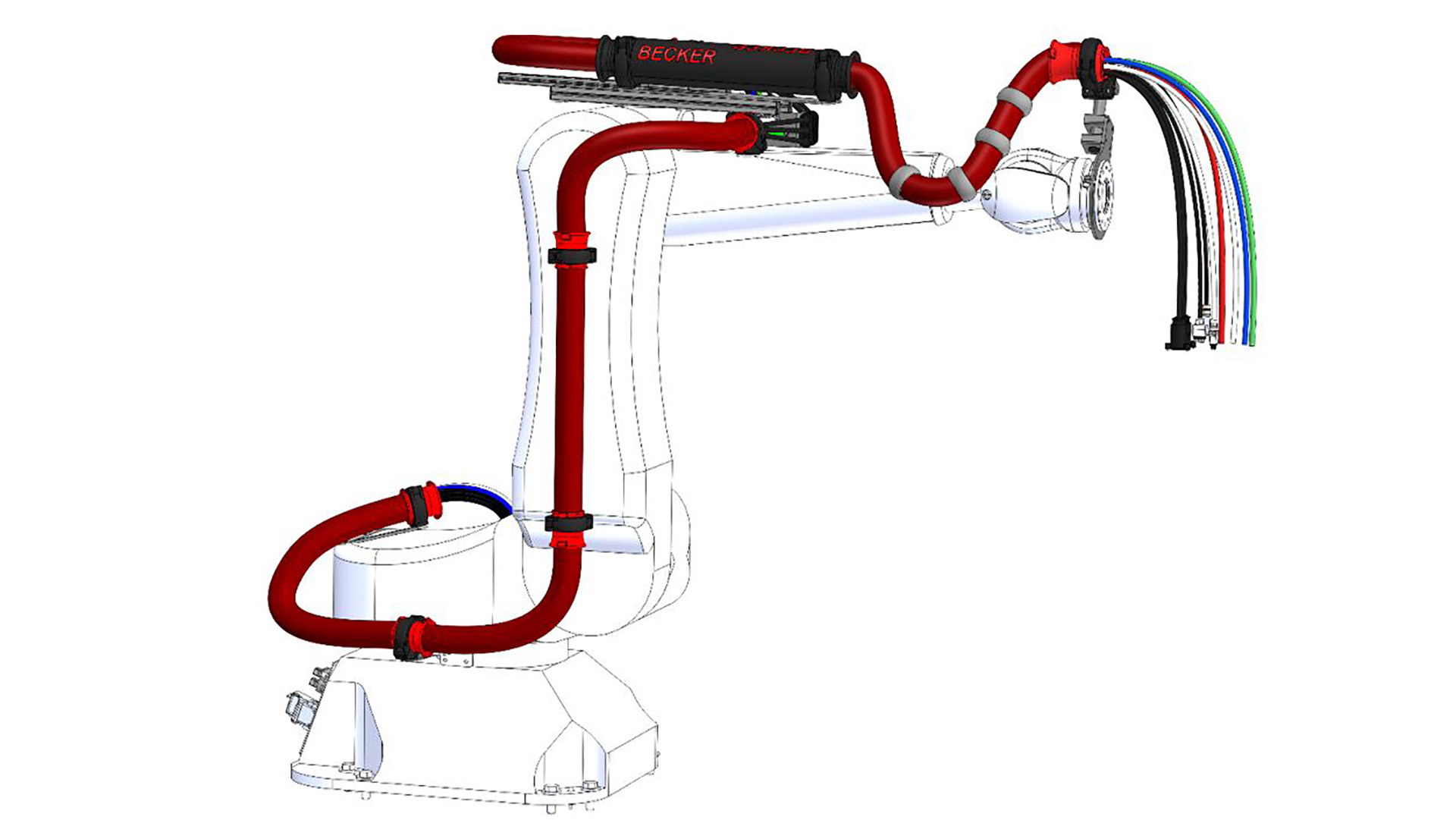

Positioned on the robot with variations of the interface position.

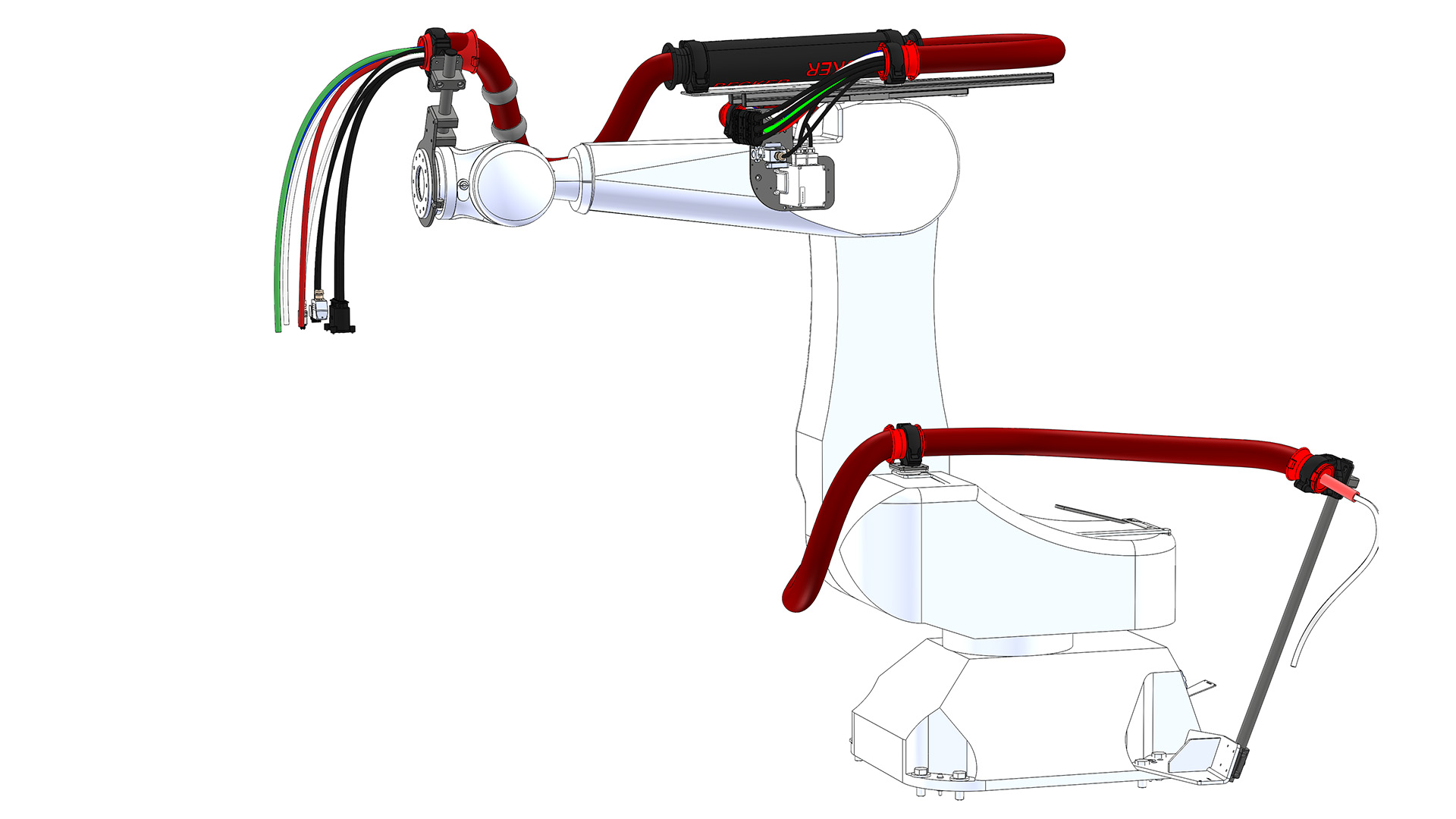

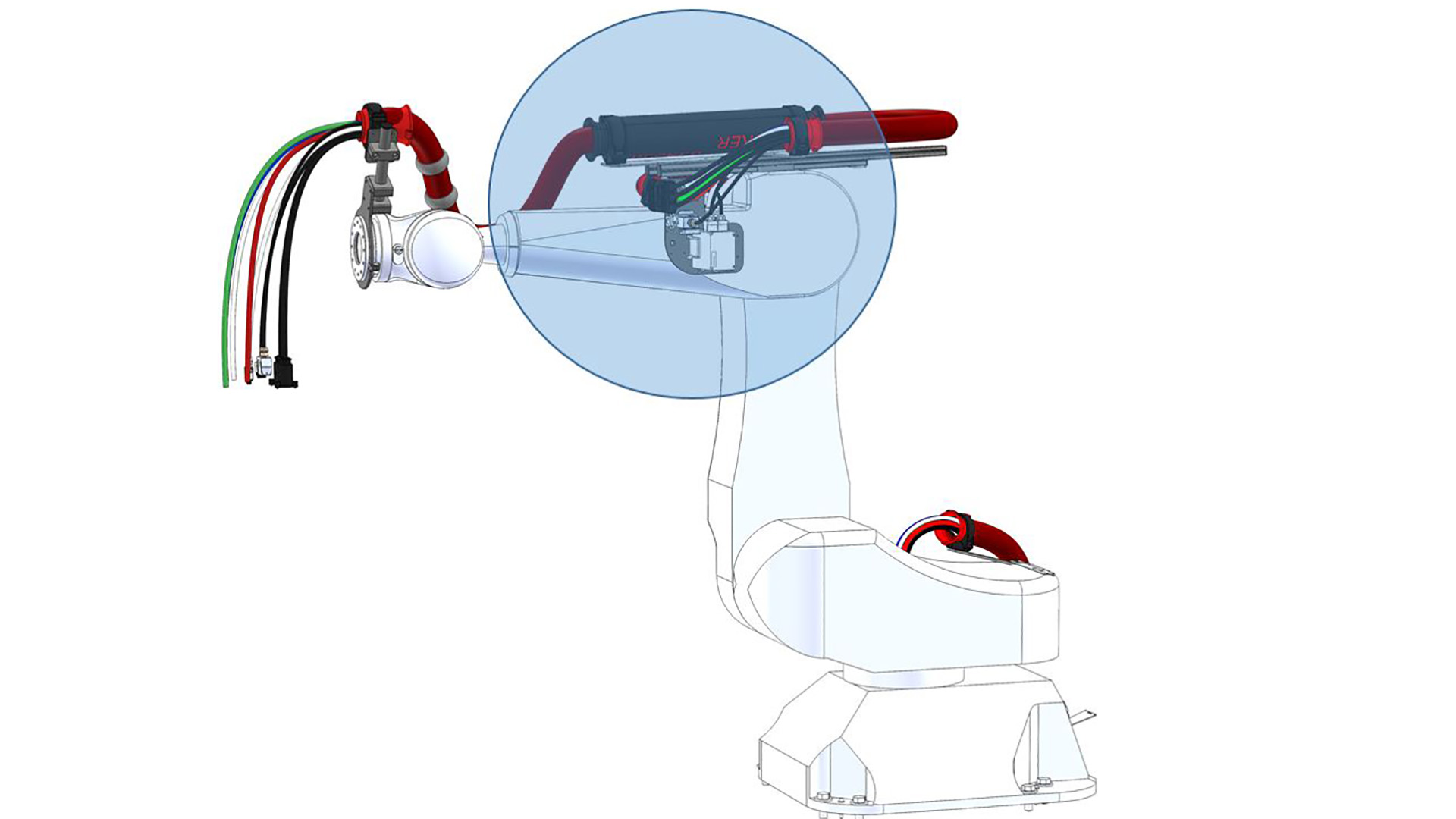

Interface on the side of the robot “swing-arm”.

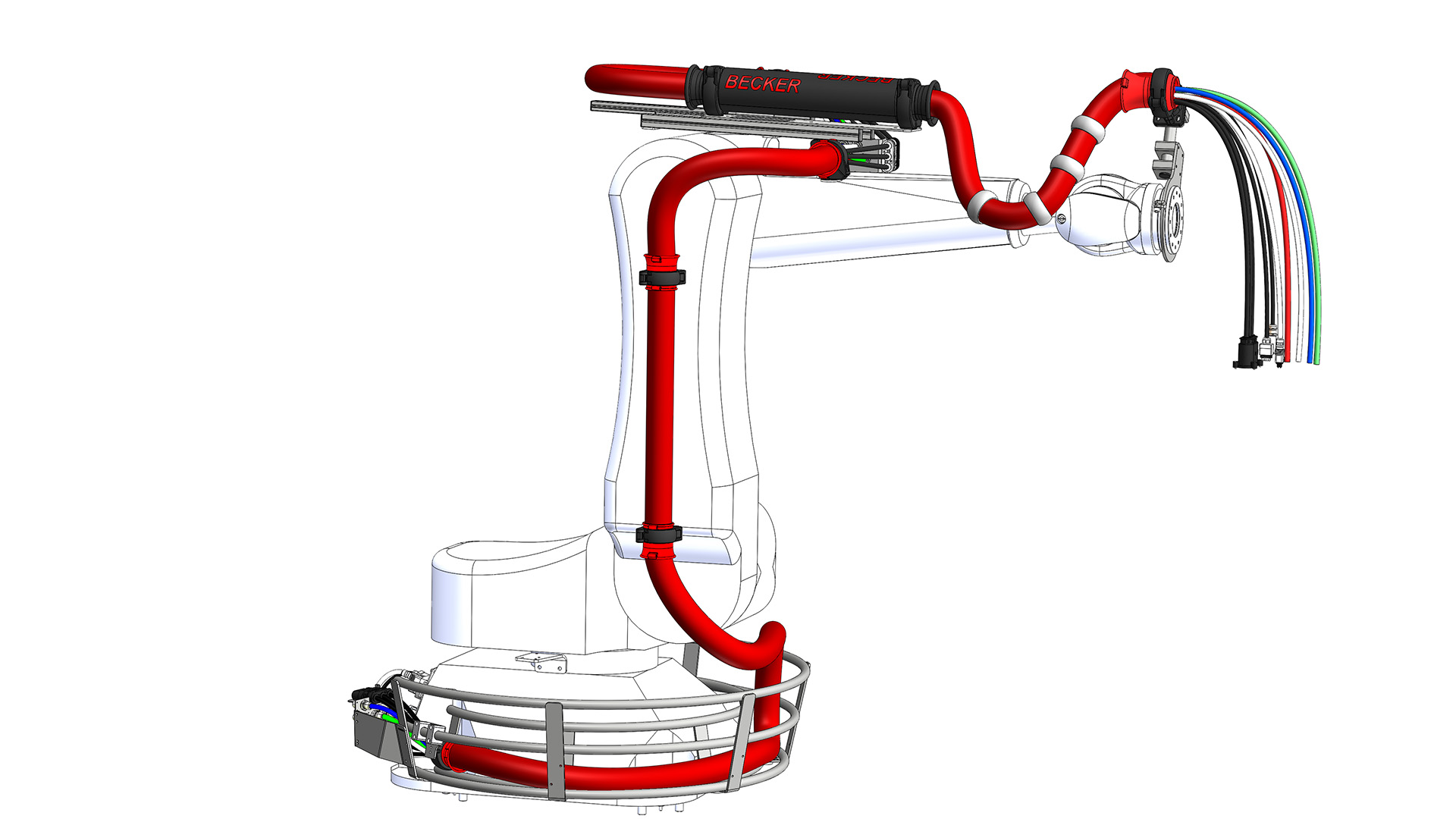

Interface in the area of Axis 3.

Depending on the application, we can mount up to 3 corrugated energy supply systems on the robot.

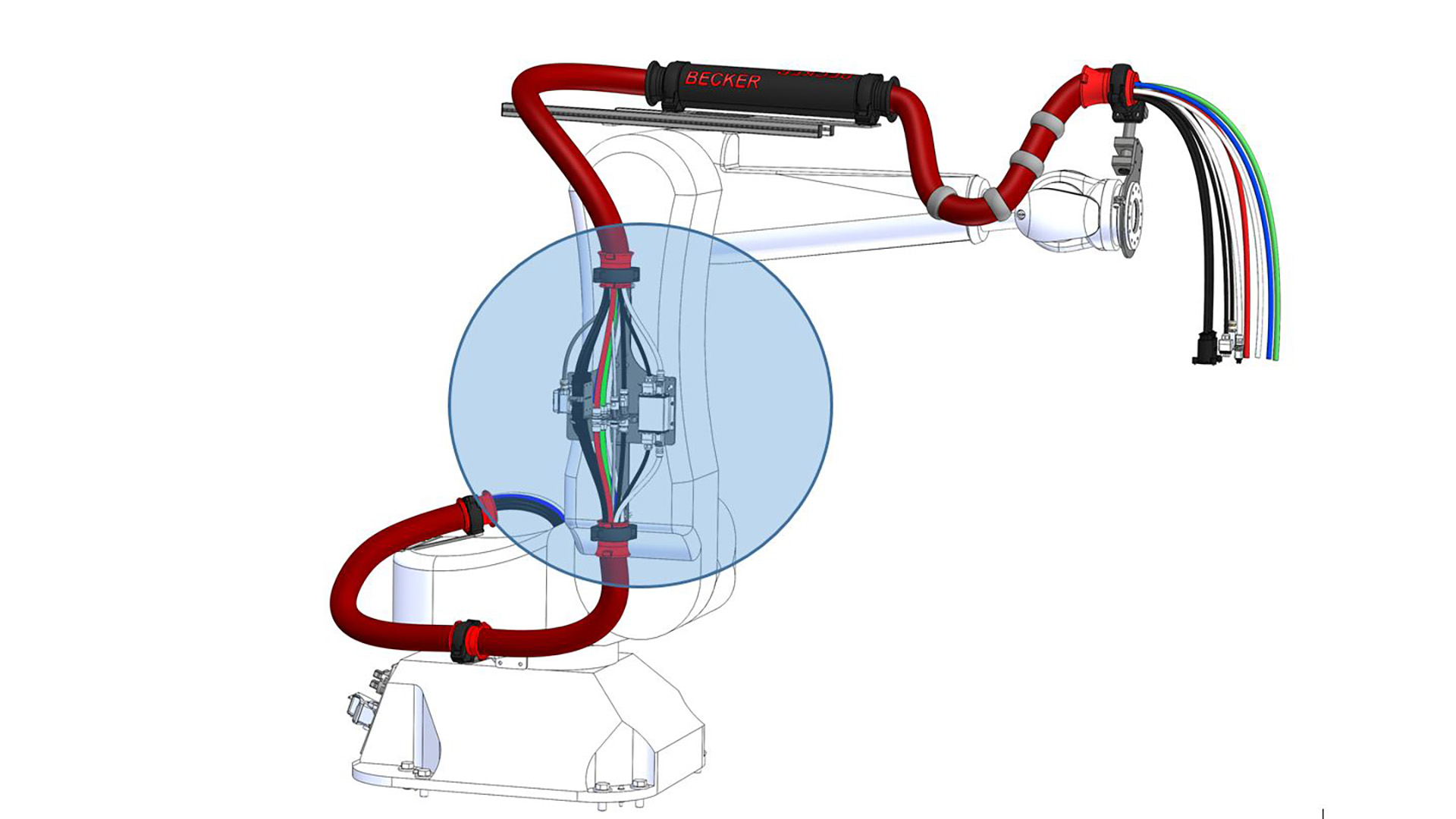

Single System

For standard applications (e.g. spot welding and gripper applications)

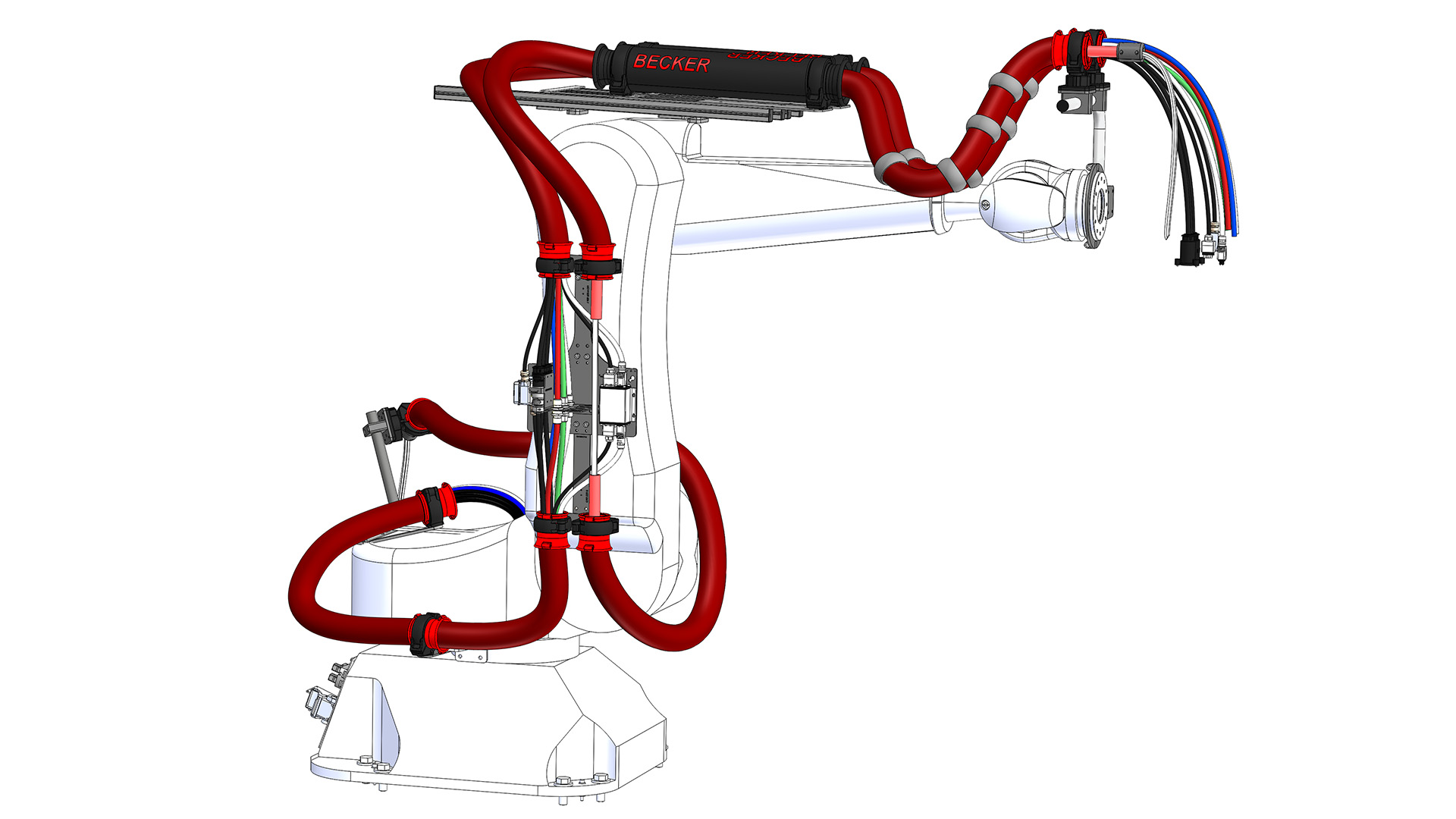

Double System

For applications with the supply of joining materials. (e.g. screw, rivet)

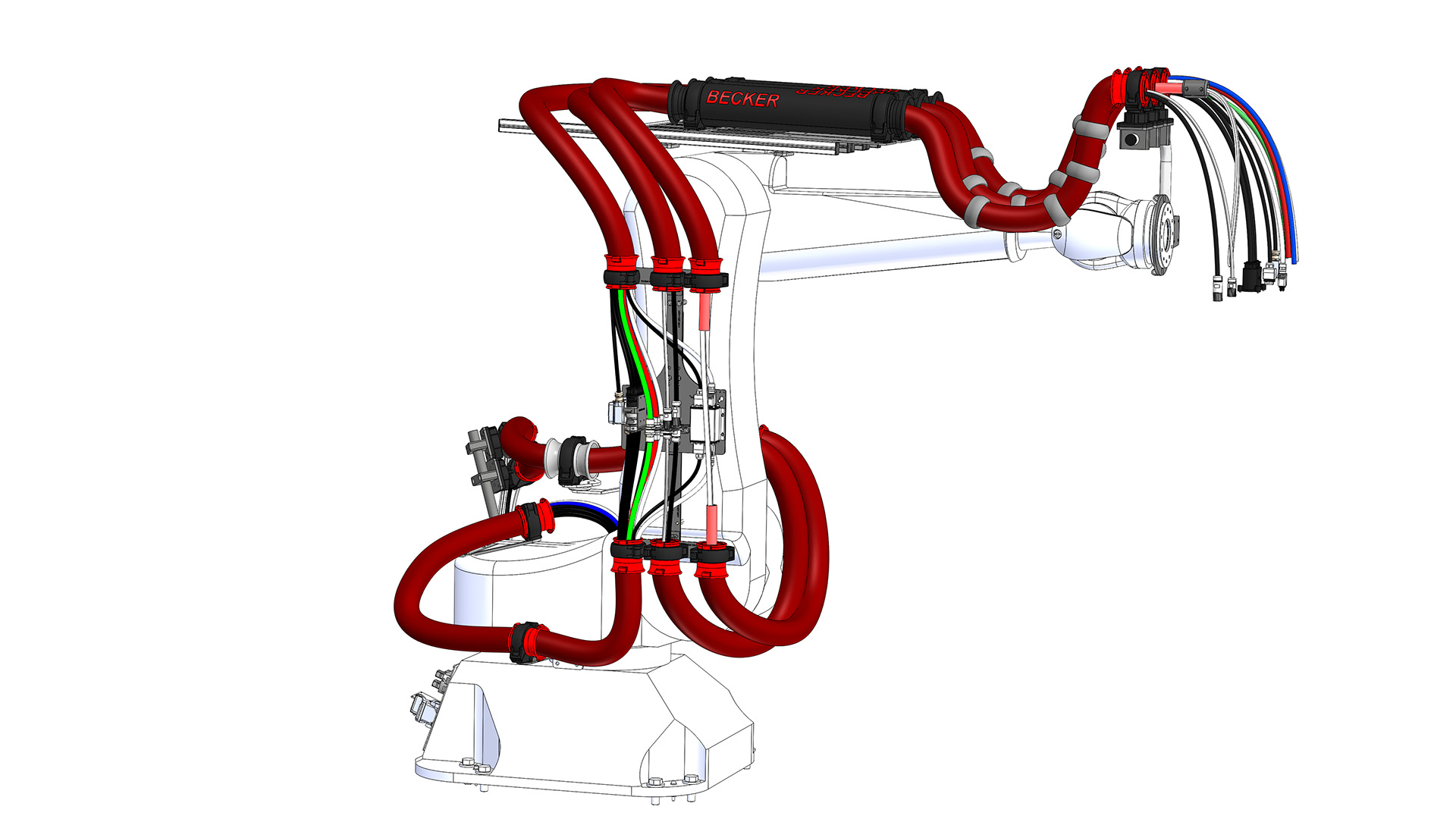

Triple System

For multi-applications and laser applications (rivet / screw combination, laser for suction and LLK separate guide)

External guidance systems on the robot base

Pivoting / turning device in the area of ​​the Axis 2. For media that are not routed through the hollow axle of the robot.

For many types of robots, we also have the "in-basket’’ accessories.
